(1)YC-181 chemical anchor bolt contains vinyl resin, well-selected
quartz sand, curing agent powder in a small capsule, these components
are put in a bigger glass tube,be used togetherwith the certain dimension
metal bolt. It is a new anchoring materials, a substitution for embedded parts
and the expansion screw.
(2)Features
Quick and stable anchoring;
Strong tensile strength, suitable for heavy loading;
Non-swelling, fit to kinds of base materials;
Fully glued with the substrates, anti-wear of passivity;
Acid resistance, anti weathering, anti aging;
Can be used in wet and moist conditions;
Excellent thermostability;
Safe and simple operation in construction;
A wide range of construction temperature from －10℃ to ＋40℃.
(3)Application range
Install metal posts into the concrete substrate; Install beams (of steel material or wood)
onto concrete post or wrapped panels; fix stone hanging board, curtain wall;
Install protective rail, railings, large outdoor display panel, advertising
poster board, vertical rod, equipment, support track and conduit.

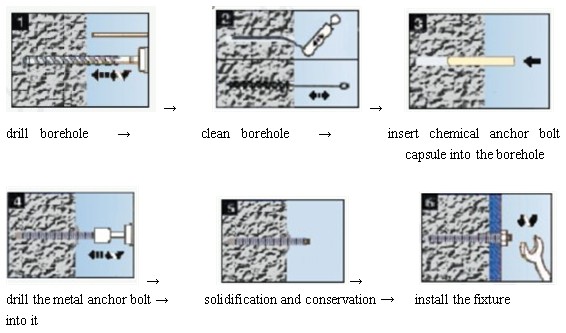

(4). Installation Date Sheet
Construction and Installation Data Sheet
|
Model |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M30 |
|
Anchor bolt diameter(mm) |
8 |
10 |
12 |
16 |
20 |
24 |
30 |
|
Anchor bolt length (mm) L |
110 |
130 |
160 |
190 |
260 |
300 |
380 |
|
Drill borehole diameter (mm) dB |
10 |
12 |
14 |
18 |
25 |
28 |
35 |
|
Embedment depth (mm) t |
80 |
90 |
110 |
125 |
170 |
210 |
280 |
|
Thickness of fixture (mm) Smax |
14 |
20 |
25 |
35 |
65 |
65 |
70 |
|
Min. substrate thickness(mm) d |
130 |
140 |
160 |
175 |
220 |
260 |
330 |
|
Max. tightening torque Mp(Nm) |
10 |
20 |
40 |
80 |
150 |
200 |
400 |
|
If necessary, hole depth and strength could be increased according to the specific requirements |
(5). Solidification time(after which the drawing test can be conducted)
|
Temperature |
> 20℃ |
10℃-20℃ |
0℃-10℃ |
-5℃-0℃ |
|
Dry concrete |
10min |
30min |
60min |
3h |
|
Wet concrete |
30min |
60min |
2h |
8h |
We have two products been exporting to Southeast Asian countries,
customers from United States have recognized the quality of these two products.
